Quick Details

  • Feature: Fireproof
  • Place of Origin: Shandong, China (Mainland)
  • Dimensions: 600*300*200mm 300*300*300mm 300*300*250mm
  • Fiber Diameter: 2-4.5micron
  • Brand Name: Jiuchen
  • Application: Refractory
  • Ultimate Strength(≥ MPa): 0.04
  • Model Number: STD 1260
  • Grade: Standard (Standard)
  • Working Temperature: 1050C
  • Density: 220/240kg/m3

Packaging & Delivery

Packaging Details plastic bag inside,carton or woven bag outside
Delivery Time 10-15days after receiving the advanced payment
Product Description

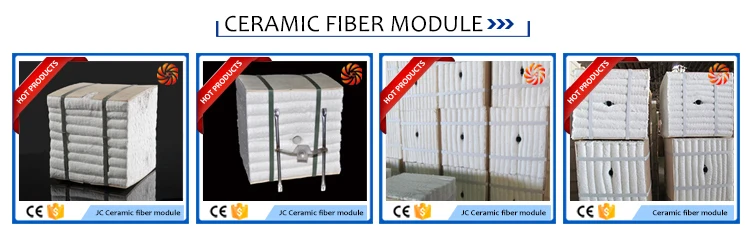

 Ceramic fiber modules with S304 anchors

The Ceramic Fiber Module is made from continuous fold ceramic fiber blankets under pression .These Modules are specially design to meet or improve the thermal insulation requirements of industry furnace. There are various anchor systems. The ceramic fiber module is a new type of refractory furnace lining products aiming at simplifying and speeding up furnace construction and improving the integrity of furnace lining. This product has clean and white color as well as formal dimension, which can be directly fixed on the anchor nail on steel plate for shell of industrial furnace with excellent refractory and insulating effect. Thus, it has improved the refractory and insulating integrity of furnace and pushed forward the progress of furnace construction technology



Features:

1. Easy and fast installation

2.Low heat storage fuel costs

3.This design creates a very light lining,less steel required

4.Several anchor systems



Product Application:

1.Steel industry:types of furnaces including heating furnaces, heat treatment furnaces ladle cover,annealing furnaces,bell-type furnaces
2.Ceramic industry: shuttle-type kilns, end-fired furnaces,tunnel kilns and other types of ceramic furnaces,kiln cars,kiln doors.
3.Petrochemical industry:cracking furnaces,converting furnaces,constant/reduction press furnaces,flue pipes.
4.Heat-treatment industry: annealing furnaces, normalizing furnaces, drawing furnaces,pit furnaces, kiln cars.High-temperature equipment, for example, pot furnaces, electricity resistance furnaces and other kinds of industrial furnaces.



Technical Data:

ITEM

PRODUCT

COM

STD

HP

HA

HZ

Classification Temperature(℃)

1100

(2012)

1260

(2300)

1260

(2300)

1360

(2480)

1430

(2606)

Working Temperature (℃)

<1000

(1832)

1050

(1922)

1100

(2012)

1200

(2192)

1350

(2462)

Density(kg/m3 )

220+/-15

220+/-15

220+/-15

220+/-15

220+/-15

Chemical Composition %

AL2O3

44

46

47-49

52-55

39-40

AL2O3+SiO2

96

97

99

99

-

AL2O3 + SiO2 +ZrO2

99

ZrO2

15-17

Fe2O3

<1.2

<1.20

0.2

0.2

0.2

Na2O+K2O

≤0.5

≤0.5

0.2

0.2

0.2

Dimension  (mm)

600x240-300x100-200, 300x300x150-300
